Key Deliverables at LOD 400

• 001 • Shop drawings for all trades
• 002 • Construction sequencing and detailing

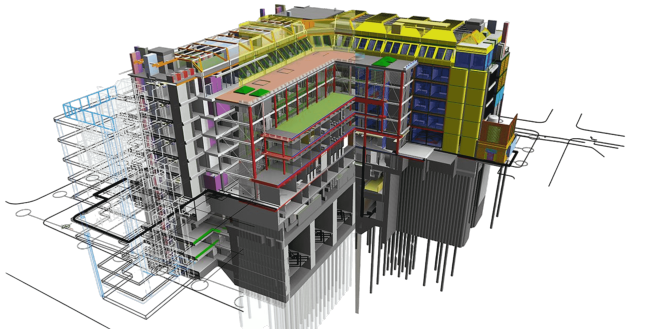

• 003 • Coordination model with clash resolution

Key Deliverables at LOD 500

• 001 • As-built modeling with laser scan integration.
• 002 • Model classification and asset data.
• 003 • Facility management-ready handover models

• MODELLING PACKAGES
• CONSTRUCTION DISCIPLINES MODELED ARCHITECTURAL
• 001 BLOCK WORK
• 002 TILING
• 003 GENERAL FINISHING
• 004 CEILING
• 005 JOINERY
• 006 CURTAIN WALLS & CLADDING
• 007 FACADE CLADDING
• 008 LANDSCAPE

• CONSTRUCTION DISCIPLINES MODELED
• STRUCTURAL
• 001 CONCRETE DIMENSION
• 002 GENERAL ARRANGEMENT (GA)
• 003 REINFORCEMENT DETAILING
